Enterprise SSO Login - Okta identity provider

Requirement


MockFlow Enterprise license or annual TeamPack license is required for SSO


  1. Configuration steps in Okta
  2. Configuration steps in MockFlow


In addition to this guide, also refer to the steps mentioned in the guide link published by Okta for MockFlow - https://saml-doc.okta.com/SAML_Docs/How-to-Configure-SAML-2.0-for-MockFlow.html


Configuration steps in Okta


This section will explain the steps to add MockFlow to your organization's account in Okta.

If you have already included MockFlow as an application in your Okta account, you can skip to the next section.


1Login to your organization's Okta account as an admin user.


2From the dashboard, click on "Applications" in the dropdown menu.




3Proceed to "Browse App Catalog"

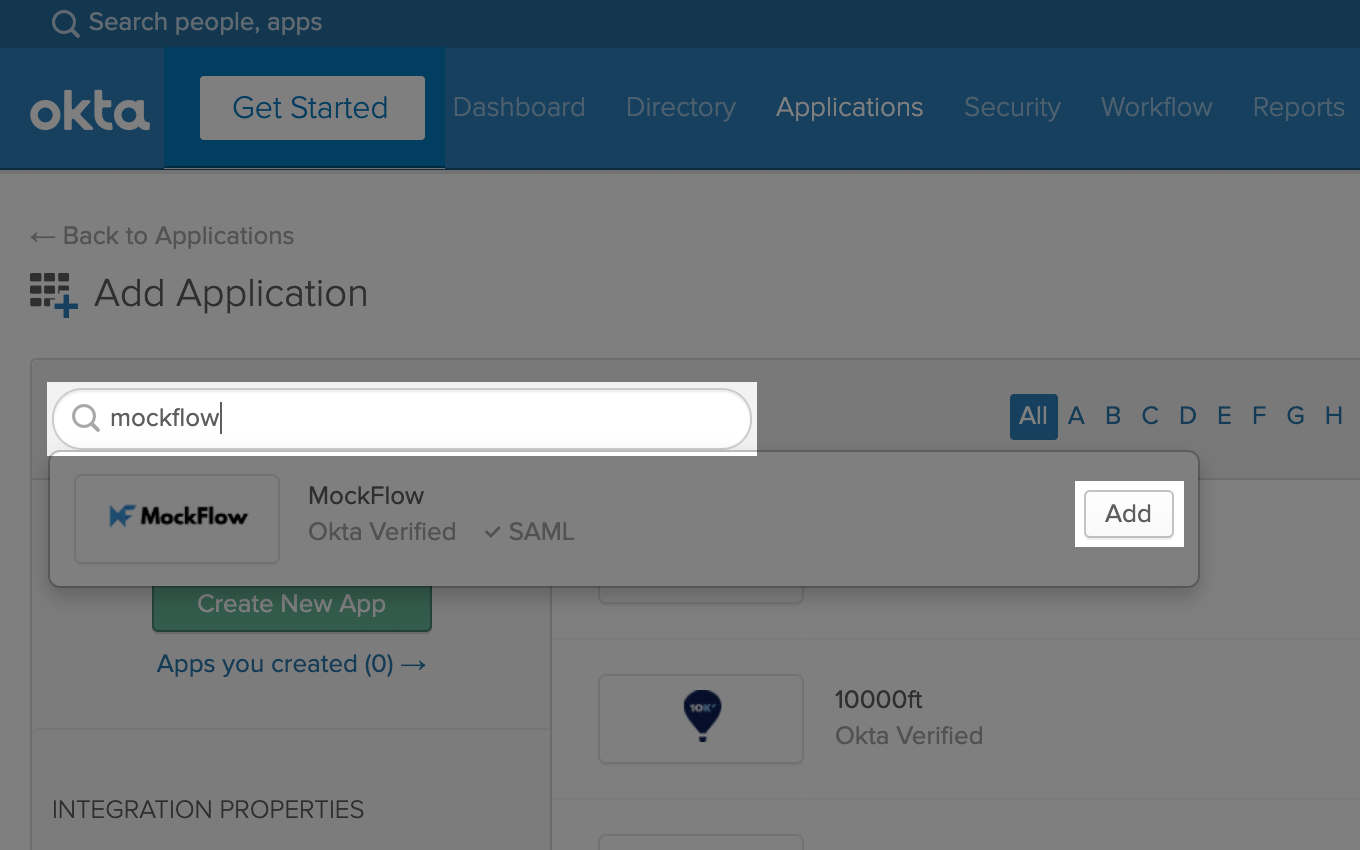

4In the search application field, type "MockFlow" to list the application and then click the result.




5Click on "Add Integration" to add MockFlow into your Okta instance.




6Click the "Next" button to continue.




7In the Sign-On options tab click on "View Setup Instructions", which will provide you the following details.

  1. Sign-in URL
  2. Issuer ID
  3. X.509 Certificate

You will require these details to be entered in MockFlow's SSO configuration.




8Click "Done" to complete.


Configuration steps in MockFlow


1Login to MockFlow as an enterprise admin user, Click on the profile image for menu.




2Under "My Accounts", select the tab "SSO."




3Click the toggle button to enable SSO for your enterprise.




4Select the provider as "Okta."


5Sign-in URL: Copy and paste the following [Okta:Identity Provider Single Sign-On URL].


6Issuer Id: Copy and paste the following [Okta:Identity Provider Issuer].


7X.509 Certificate: Copy and paste the following: [Okta:X.509 Certificate].


8Click "Save."




Adding users to MockFlow


1You can add the list of users to allow access into MockFlow in the same "My Accounts" panel.


2Under the tab "User Licenses", enter the email of the users to provide them access.


3You can also revoke the license when required.

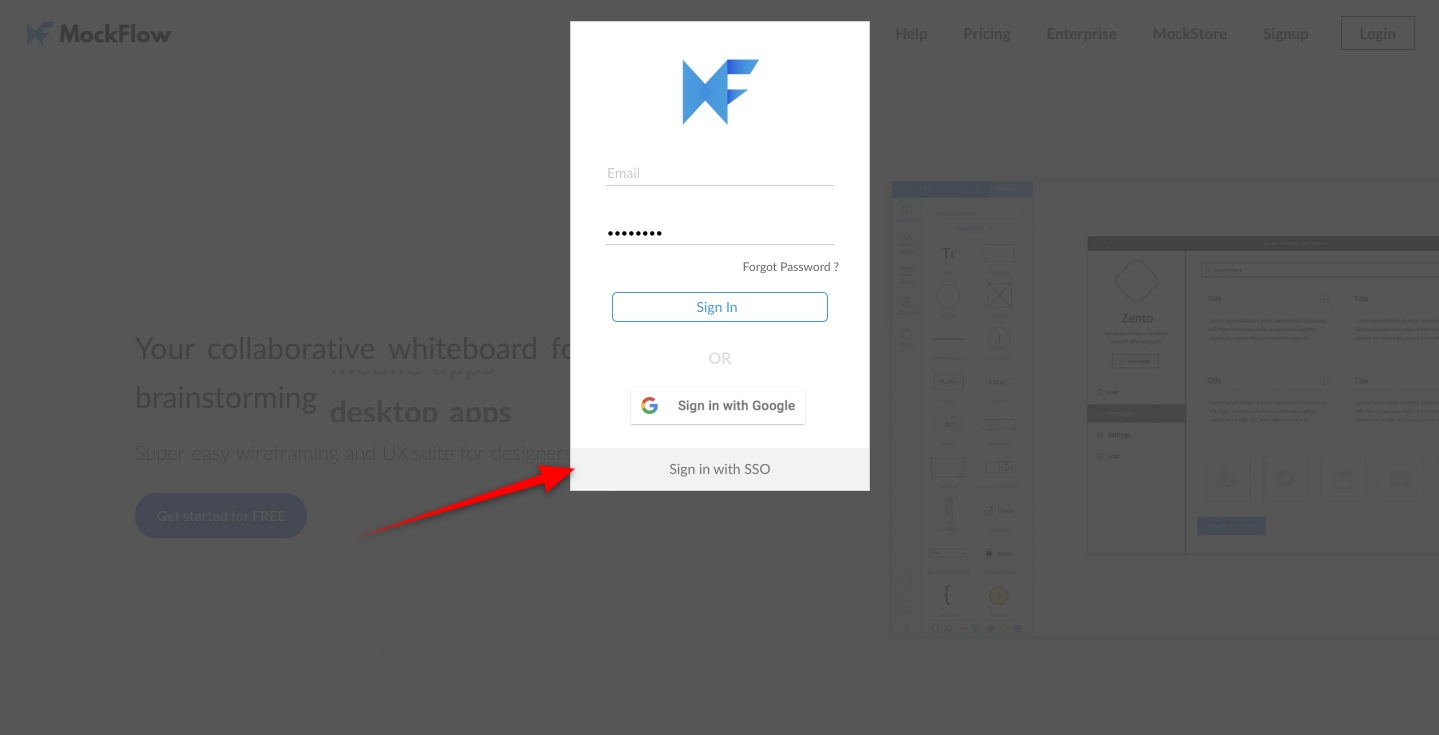

On how to log in with SSO in MockFlowAt https://mockflow.com, clicking the login button shows the login dialog with log in with SSO button as shown below




4After sign in with SSO.





SCIM Provisioning

If you would like to enable SCIM User Provisioning, follow the steps in https://support.mockflow.com/article/MsOJBVv5Opb-How-to-enable-SCIM-Provisioning
